• TUFF-240 Anchor Ready Kit
1 6

TUFF WINCH

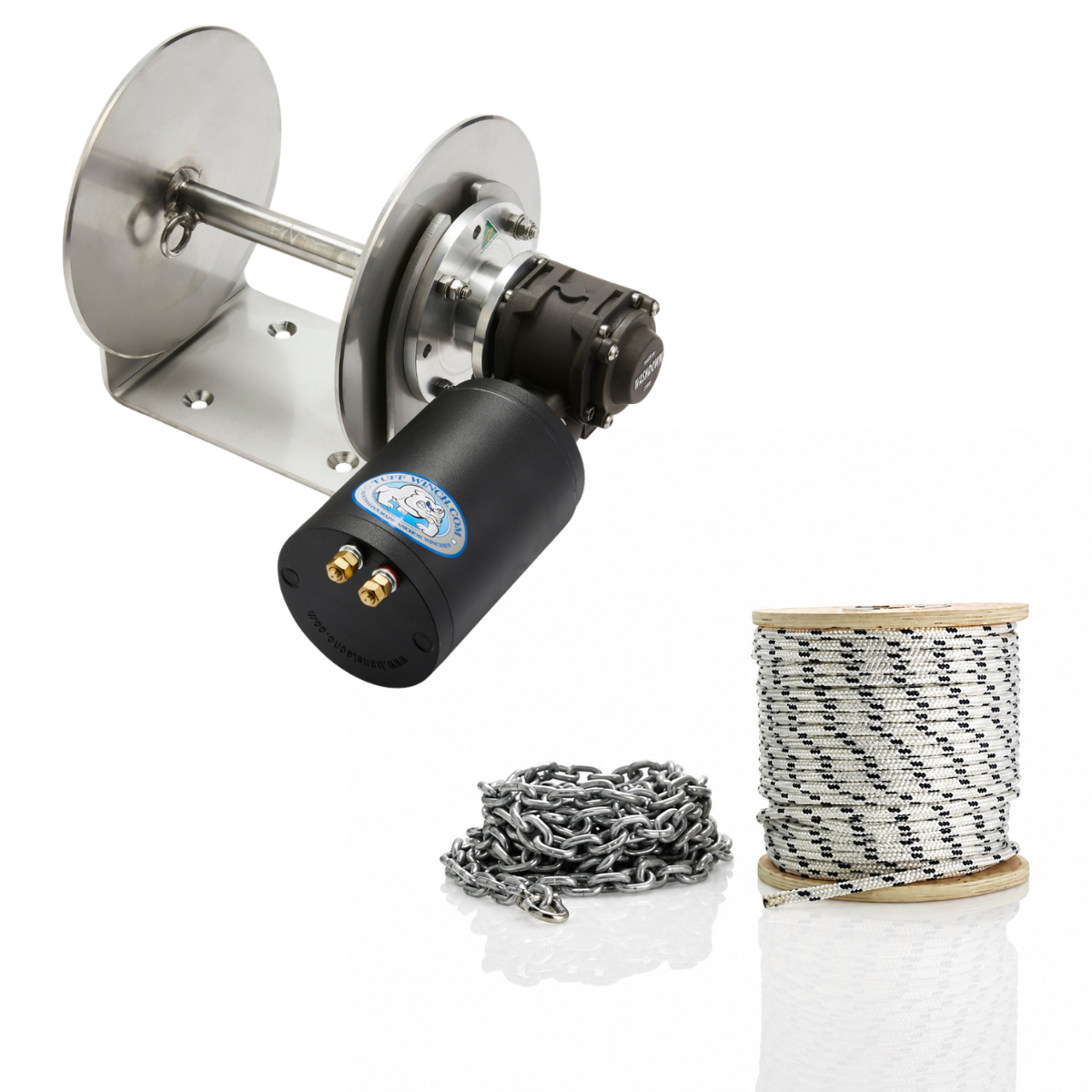

TUFF-240 Anchor Ready Kit

TUFF-240 Anchor Ready Kit

The Australian Made TUFF-240 Drum Anchor Winch is a highly efficient and enhanced model within the TUFF Series, offering superior performance and anchoring capability. Features a generous 240mm drum capacity with high torque output power. Suitable for boats up to 7.5m in length. Includes 75m rope and 6m chain.

$1,600.00 AUD
$1,600.00 AUD
Sale Sold out
Wireless Remote Operation

Product Details

Everything you need to anchor — nothing you don't.

The Anchor Ready Kit pairs the TUFF-240 Drum Anchor Winch with a Double Braid Nylon Rope and Galvanised Chain kit matched exactly to its drum: 75m of 8mm Double Braid Nylon Rope + 6m of 6mm Galvanised Chain (Matched to this Winch's Drum). No sizing, no guessing, no buying rope and chain separately and hoping it fits.

Built for DIYers and upgraders

This tier exists for boaters doing their own electrical install, upgrading an older or worn-out rope and chain setup, or who already have a deck roller sorted. You get the winch and matched rope ready to go, without paying for a wiring loom or roller you don't need.

Same TUFF winch, same warranty

The TUFF-240 Drum Anchor Winch features a 240mm Drum Diameter, Italian 1500w IP66 epoxy-coated 4 brush motor, and a 3000kg Holding Capacity — built for boats up to 7.5m. Every TUFF winch is hand-built in Australia and backed by our 5-year warranty, direct with us, not a third party.

What's not included

Wiring loom and deck roller aren't included in this kit. If you'd rather have everything wired and ready to bolt on, check out our Full Kit instead.

What's Included?

  • TUFF-240 Drum Anchor Winch (Australian Made)
  • 75m of 8mm Double Braid Nylon Rope + 6m of 6mm Galvanised Chain (Matched to this Winch's Drum)
  • 6mm 316 SS Base Plate (Australian made and customised for TUFF WINCH)
  • Solenoid (400AMP)
  • Marine Grade Circuit Breaker
  • 316SS Switch Panel (Custom made for TUFF WINCH)
  • All Necessary 316 Stainless Steel nuts, bolts and washers
  • 5 Year Warranty (Direct with manufacturer, not through third parties)
  • Installation diagram(s)

Features + Technical Specs

  • 240mm Drum Diameter - Holds up to 90m of 8mm double braid rope plus 6m of galvanised chain, giving you solid capacity for extended anchoring
  • Italian 1500w IP66 epoxy-coated 4 brush motor - TUFF Exclusive. Full water-protection compliant with the International Protection Regulation Certified IEC/EN 60529. Designed to get wet, so you never worry about water ingress
  • Manufactured and Designed in Australia - Hand-built in our Queensland and Melbourne facilities with local labour and materials
  • Italian Anodised Worm Drive Gearbox with stainless steel hubs and fixtures - TUFF Exclusive. Marine graded and oversized to handle harsh saltwater conditions without maintenance worries
  • Solid 316SS Machined 25mm Spool Shaft - Provides the strength and durability needed for reliable, long-term performance
  • Super Durable 6mm 316SS Plate Covering Entire Unit - Protects your investment and stands up to the toughest marine environments
  • 316SS Twin Shaft Bearing Design (Oversized) - Triple-sealed and maintenance-free, so you spend time boating, not maintaining
  • 16 Adjustable Mounting Positions - Position the motor to suit your boat's layout perfectly, whether mounting under deck or in a well
  • 3000kg Holding Capacity - Suits boats up to 7.5m with the power to handle demanding anchoring situations
  • Machined Bevelled Edges - TUFF Exclusive. Prevents finger cuts and preserves the longevity of your rope by reducing friction and wear
  • Machined Bearing Cover T6061-T6 (Fully Sealed) - Keeps water and debris out, protecting the internal components for years of reliable service
  • 30+ years experience in the power transmission industry - We know power transmission inside and out, so you get a winch built right the first time
View full details
Anchor Ready Kit

Winch, rope & chain. Ready to drop in

Not everyone's starting from zero. You get the TUFF winch with rope and galvanised chain matched to its exact drum. Skip the wiring loom and deck roller if you're doing your own install or already sorted.

316 Stainless Australian Made Matched Rope & Chain 5-Year Warranty

Compare the four tiers

See exactly what each kit includes — and where the Anchor Ready Kit fits in.
Winch Only
Bring your own rope, chain & wiring
from $1,450.00
TUFF Winch, backing plate & switch gear
Matched double-braid rope & galv chain
Tinned copper wiring loom
316SS deck roller
Super Sarca anchor + bow sprit
View Winch Only
NEW
Anchor Ready Kit
Winch + matched rope & chain
from $1,600.00
TUFF Winch, backing plate & switch gear
Matched double-braid rope & galv chain
Tinned copper wiring loom
316SS deck roller
Super Sarca anchor + bow sprit
Shop Anchor Ready Kit
Full Kit
Wired, with deck roller — bolt on & go
from $1,950.00
TUFF Winch, backing plate & switch gear
Matched double-braid rope & galv chain
Tinned copper wiring loom
316SS deck roller
Super Sarca anchor + bow sprit
View Full Kit
Super Bundle
The lot — anchor & bow sprit included
from $2,450.00
TUFF Winch, backing plate & switch gear
Matched double-braid rope & galv chain
Tinned copper wiring loom
316SS deck roller
Super Sarca anchor + bow sprit
View Super Bundle

Prices shown are indicative starting prices. Final price varies by winch model and remote option.

Your answers to the most

Frequently Asked Questions

What battery setup do I need?

Our winches run off your main battery supply or a dual setup, so it has versatile suitability to whatever battery arrangement you prefer.

Why are your motors black not stainless?

That's an intentional choice, we utilise an oversized epoxy-coated 4 brush motor on every drum winch for true efficiency and a longer lifespan. Others use aluminium sleeves which put your motor at risk of water ingress or corrosion over time.

Do you offer free fall?

We don't have a free fall feature as standard with our winches are it sacrifices the structural integrity of the unit. They are driven up-down with switches and are very quick however we can customise your winch for this feature if you wish upon request.

How do I activate the warranty?

Your 5 year warranty begins after purchase and you can be rest assured that we backup our warranties in-house with large quantities of any and all components you may need down the track.

Are they easy to install?

Our drum winches are very easy to self install. They can be integrated with any new setup or current setup you may have and both our full kits and standalone units include the core electrical components to get you started. Following along our installation sheet is simple and we have a contact number for you to get support at anytime during installation if you run into any issues.

Where do your reviews come from?

Our reviews are verified TUFF WINCH customers and sourced from our public eBay profile, Google Business profiles and our Website. The majority comes from our eBay profile which has over 1500+ positive reviews which we have accumulated over 14+ years of selling on the platform.
