TUFF-240 Drum Anchor Winch Super Bundle

Name: TUFF-240 Drum Anchor Winch Super Bundle
Brand: TUFF WINCH
Price: 2320.00 AUD
Availability: InStock

TUFF-240 Drum Anchor Winch Super Bundle

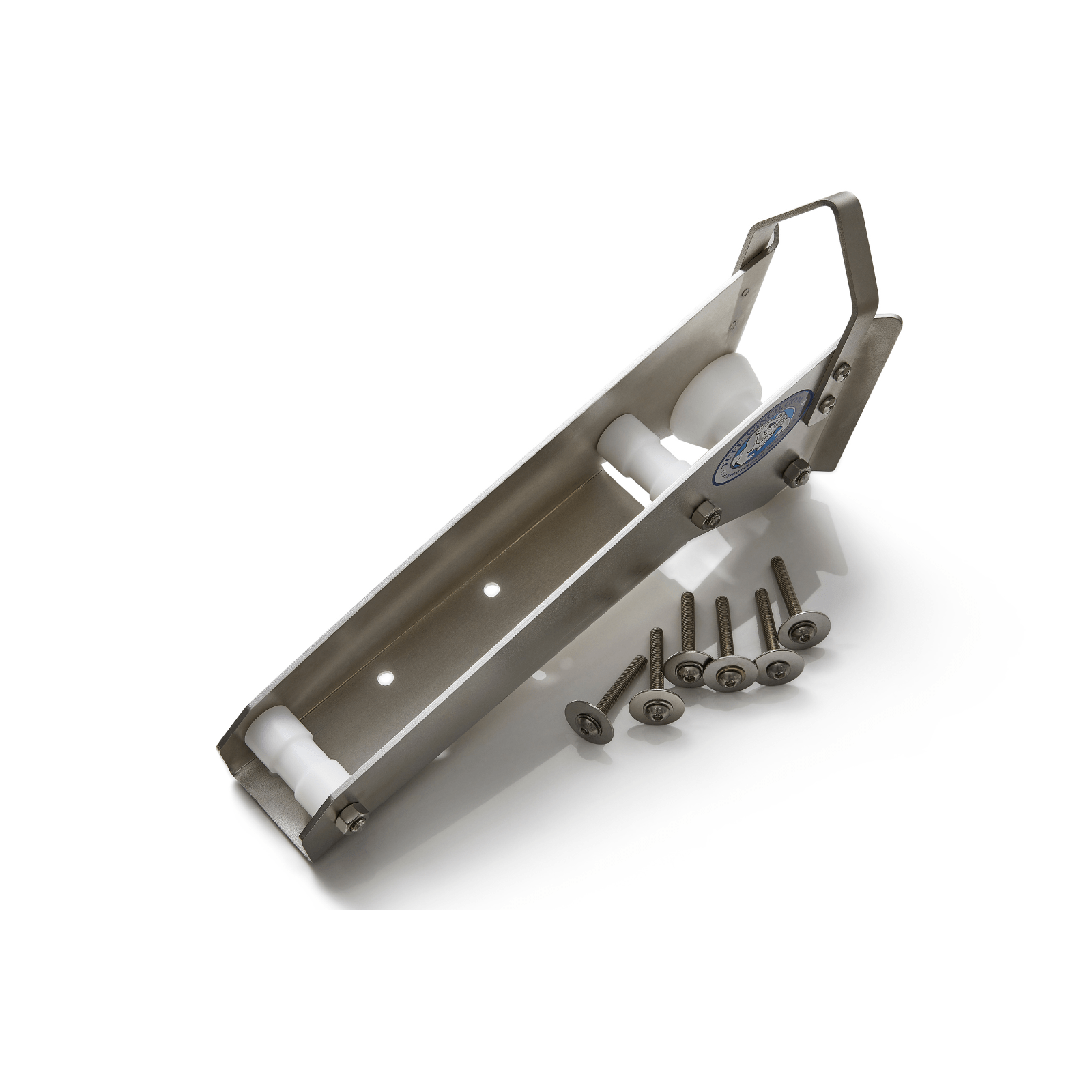

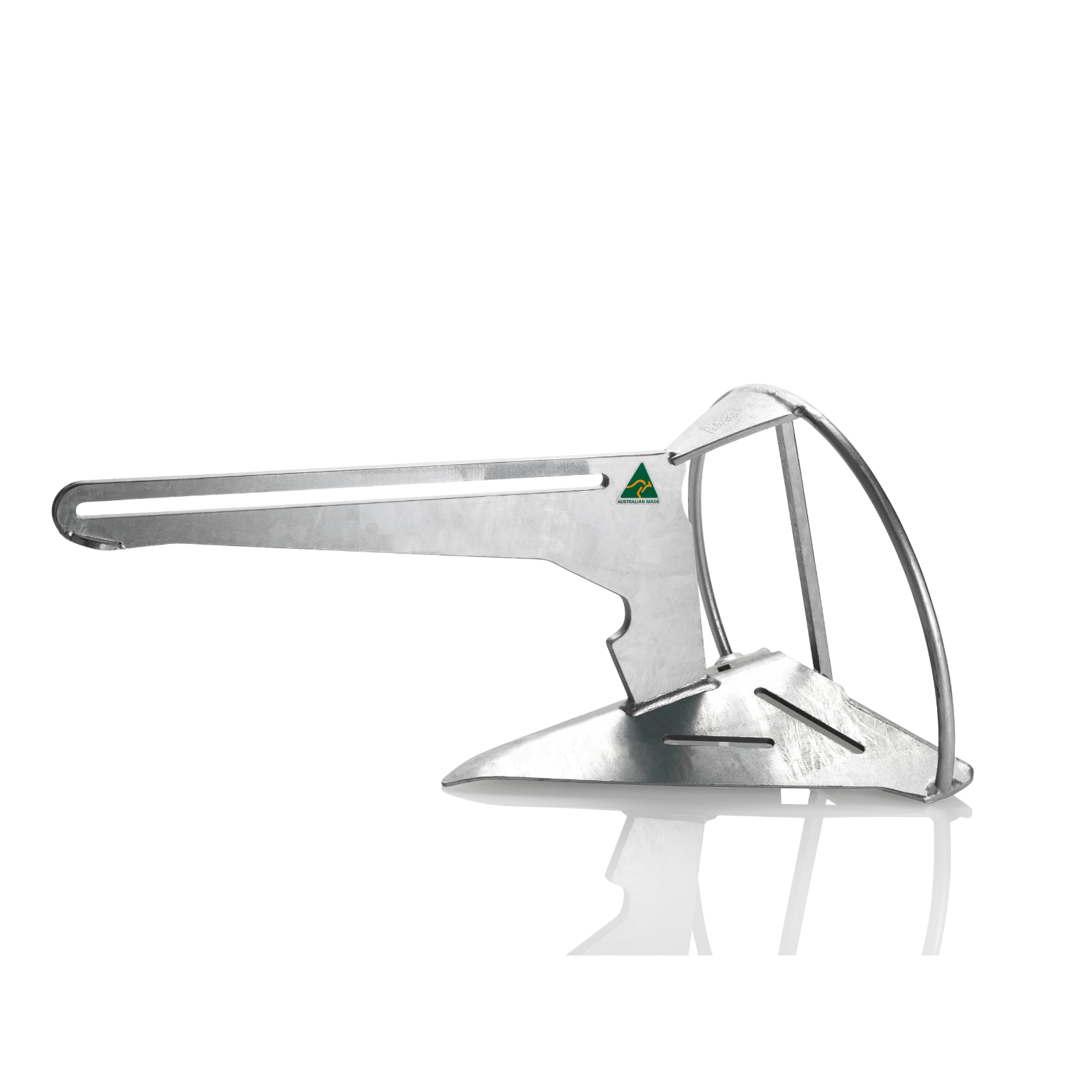

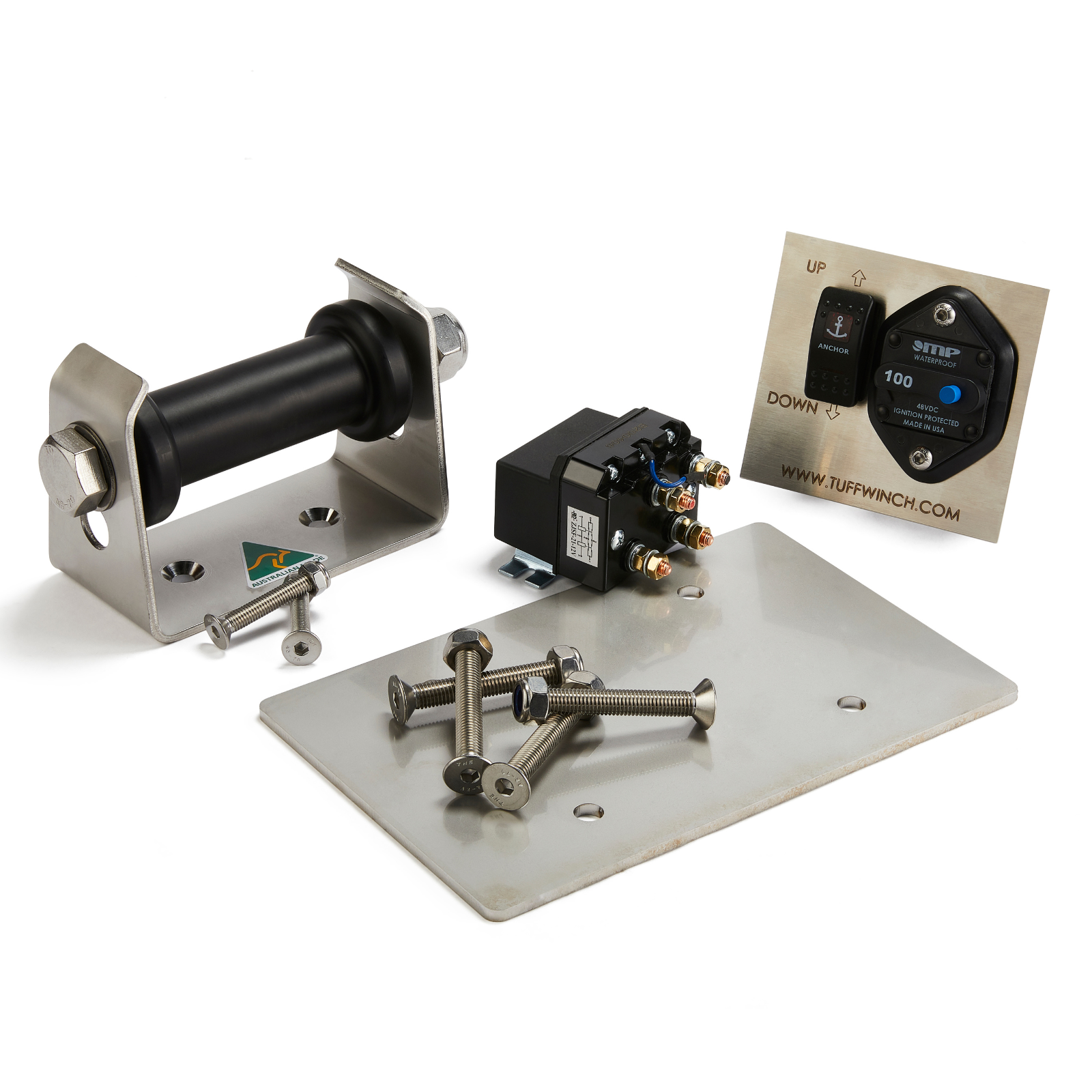

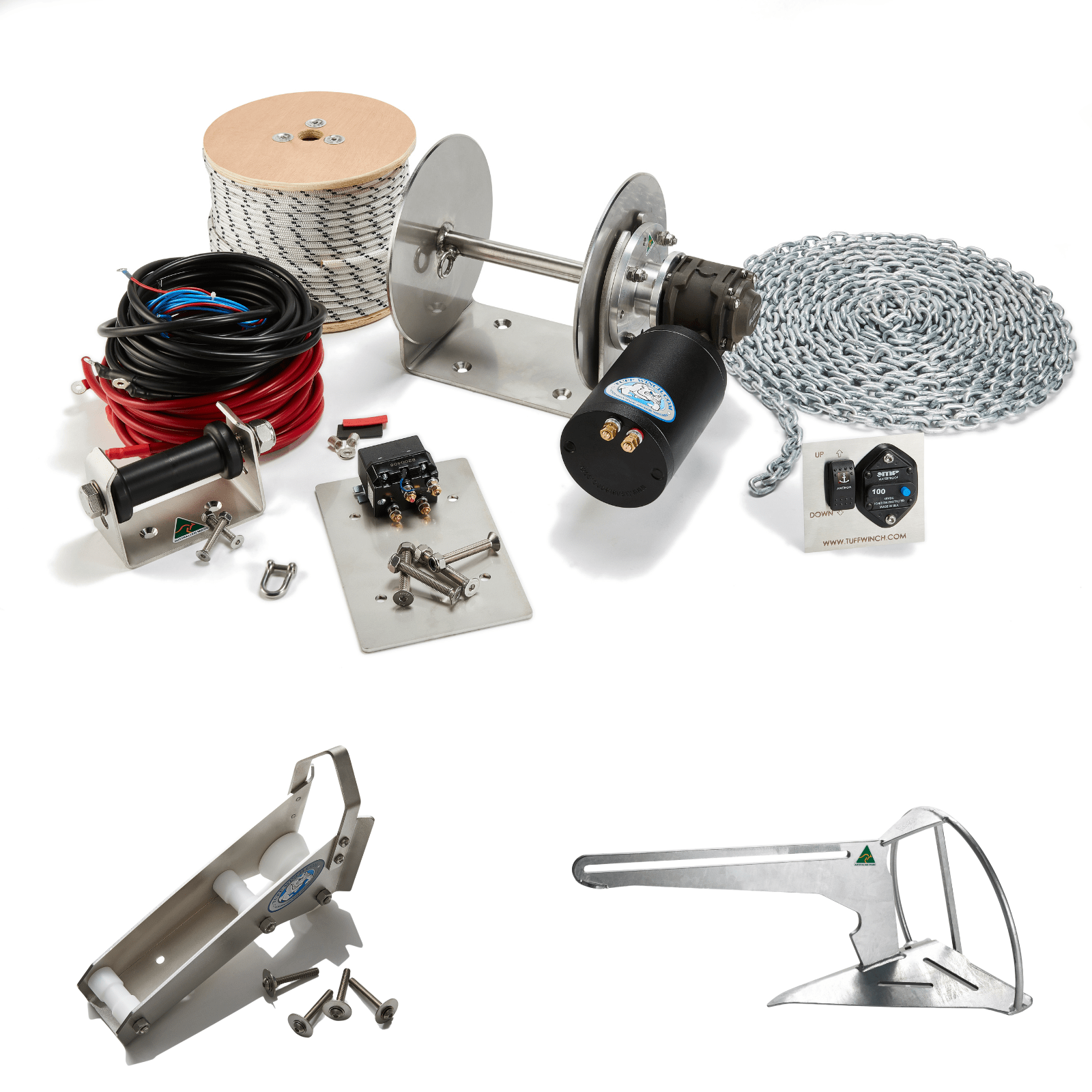

The Australian Made TUFF-240 Drum Anchor Winch is a highly efficient and enhanced model within the TUFF Series, offering superior performance and anchoring capability. Features a generous 240mm drum capacity with high torque output power. Suitable for boats up to 7.5m in length. TUFF Super Bundles include an Australian made Super Sarca N1 Anchor, Australian made TUFF Bow Sprit, Australian Made Tinned Marine Grade Copper Wiring Loom (crimped for you for easy installation), Double Braid Nylon Rope and Galvanised Chain and an Australian made 316 SS TUFF Deck Roller.

$2,320.00 AUD

~~$2,440.00 AUD~~ $2,320.00 AUD

Sale Sold out

Quantity

Details

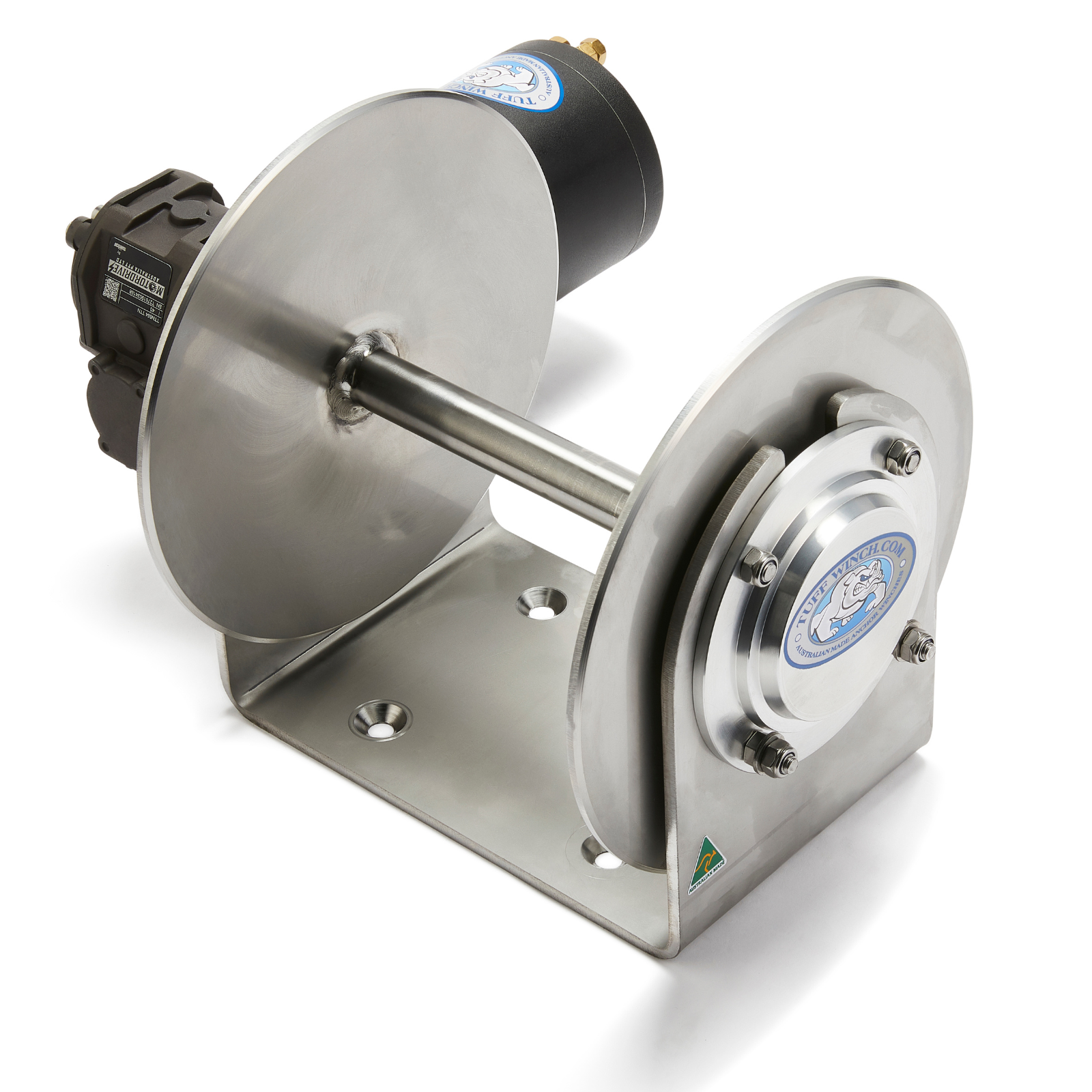

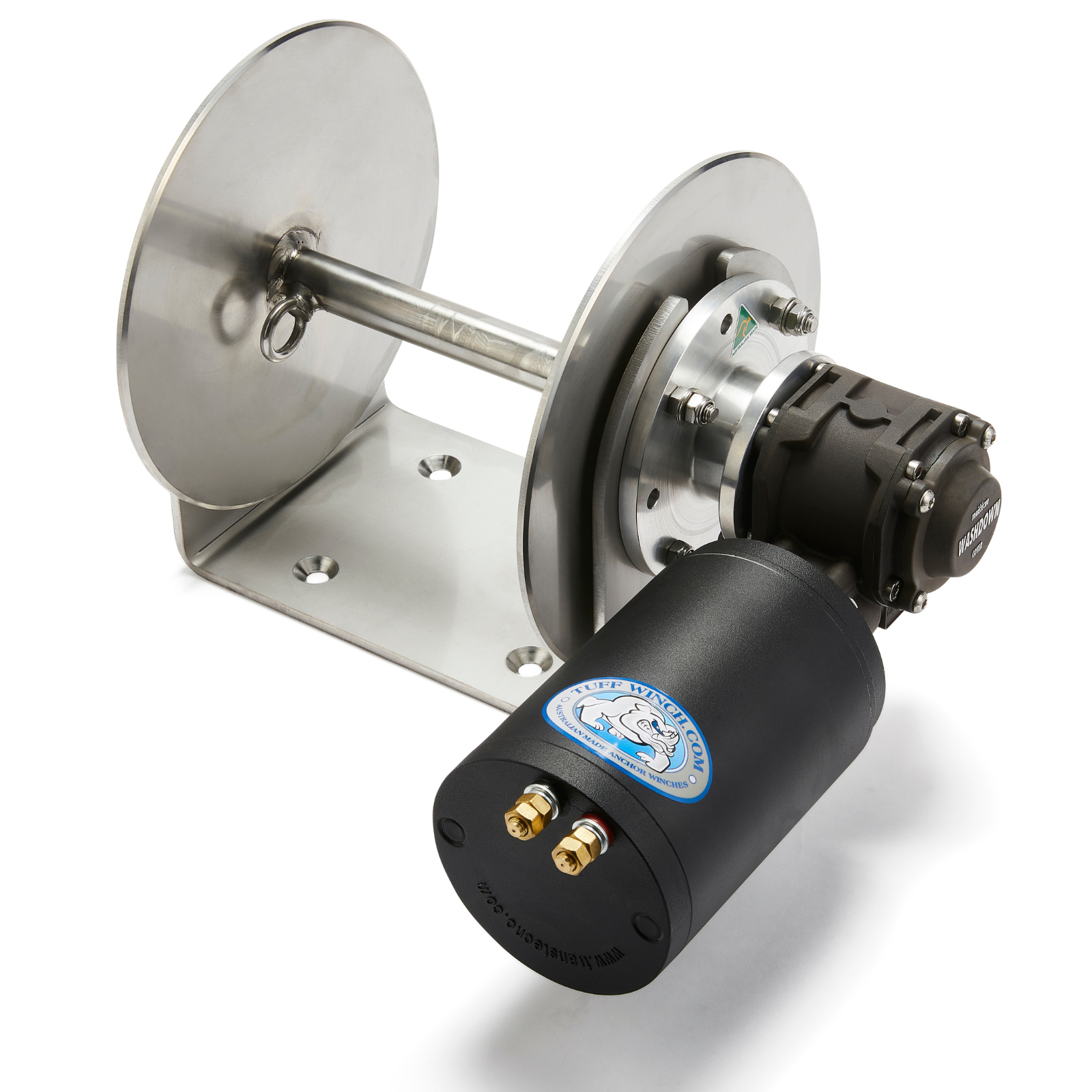

The TUFF-240 Drum Winch delivers exceptional anchoring performance, precision, and durability with a powerful transmission output in a sleek design. Perfect for larger recreational or commercial boats, it thrives in demanding applications where higher anchoring strength and capacity are critical.

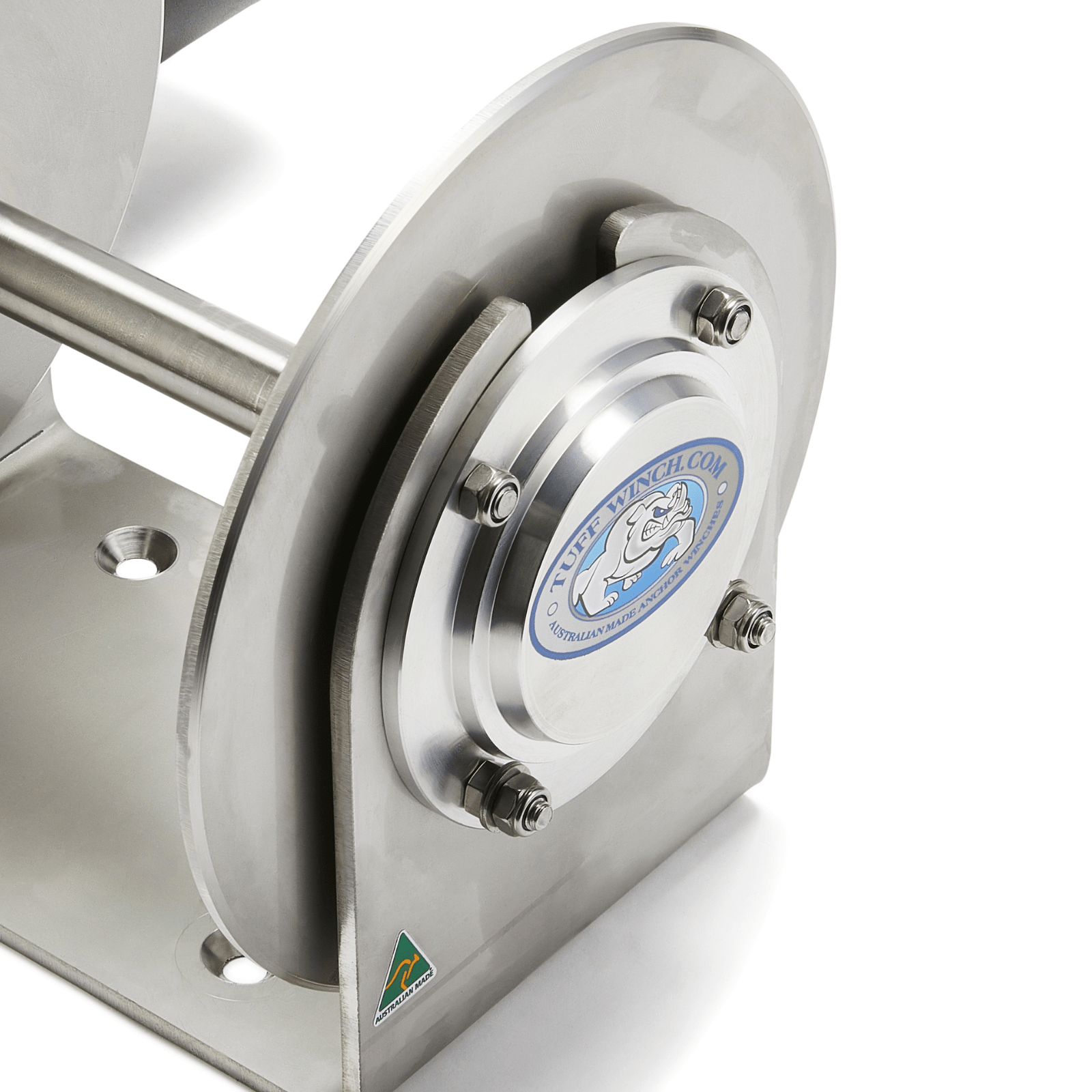

Constructed with 100% Australian Made and machined 316 Stainless Steel Drum, 6061-T6 Alloy bearing caps and stainless steel oversized bearings, Machined Beveled Edges (TUFF Exclusive). Backed by our 5 year warranty guarantee!

TUFF WINCH Full Kits include Australian made wiring looms that are made with tinned marine grade oxygen free cable, tinned copper lugs as well as epoxy filled heat shrink. These looms are ready to go right out the box for you to install, saving you hours of headaches during the installation process.

TUFF WINCH features true Italian Made Power Transmissions:

Anodised Worm Drive Gearbox with stainless steel hub and fixtures (marine graded + oversized). Will stand the test of time against any salt water conditions.
Powerful IP66 Epoxy-coated 1500w 4 brush DC Motor compliant with the International Protection Regulation Certified IEC/EN 60529 (marine graded + oversized). We don’t use aluminum “protection” sleeves as they are prone to water ingress issues, our motors are designed to get wet!
Complete rounded transmissions expertly designed for easy and compact installations.

Designed with precision engineering and built to last, the TUFF-240 suits boats up to 7.5 meters with a holding capacity of up to 3000 kgs and can be mounted in 16 different positions making them versatile for many applications. Holds up to 90m of 8mm double braid nylon rope + 6m of galvanized chain. All Drum Anchoring systems require wiring to operate. TUFF WINCH can be operated from your boat’s main battery supply or a dual-battery supply setup, whatever you prefer!

The installation process for the TUFF WINCH is designed to be simple and efficient for Australian boaters. Once you have chosen and prepared an appropriate mounting location, aligned the winch to your desired position, and completed the wiring and switch installation in accordance with the provided diagram, the final step is to perform operational tests to verify proper functionality. Upon successful testing, the winch is ready for use.

The TUFF-240 has been the go-to choice for Australian fisherman and boaters who require higher torque power and rope capacity for larger boats, with its oversized transmission and gearing no anchoring task is too big for this capable heavy duty unit.
