TUFF WINCH

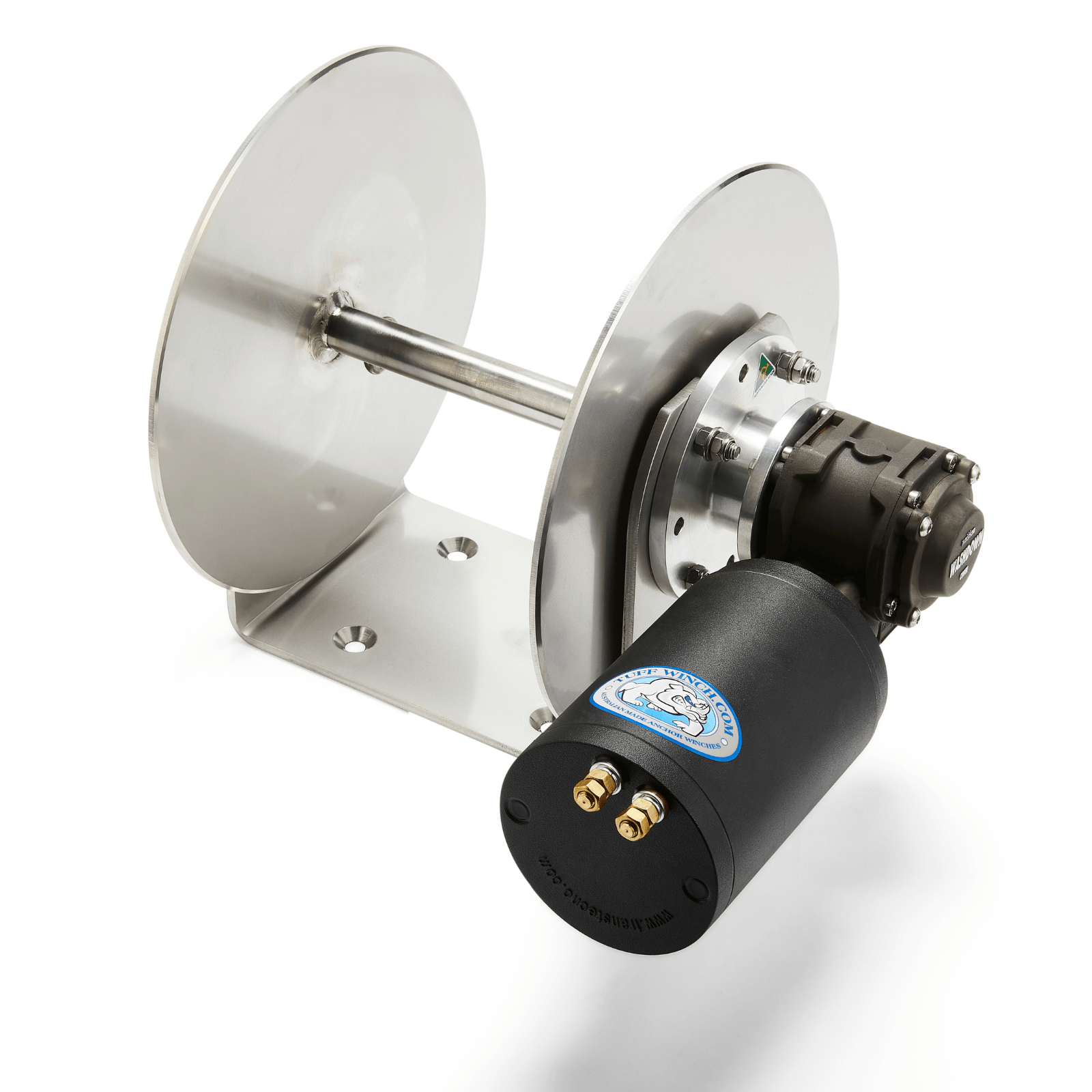

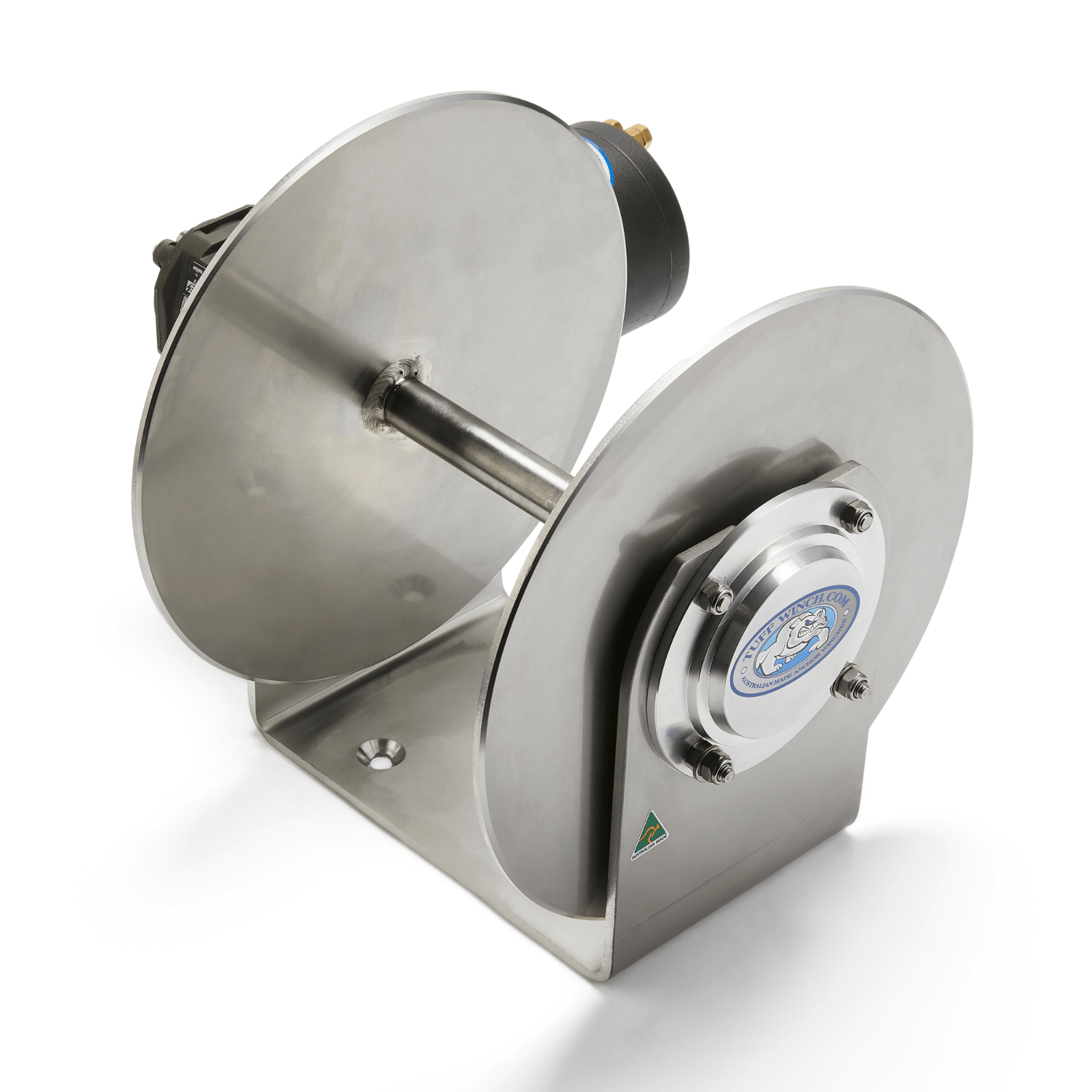

TUFF-240 High Capacity Drum Winch Kit
TUFF-240 High Capacity Drum Winch Kit
The Australian Made High Capacity version of the TUFF-240 Series; features a robust 300mm drum, delivering superior anchoring performance for larger vessels up to 8m in length. Engineered for durability and precision in a compact design, it’s ideal for demanding marine environments. Full Kits include: Australian Made Tinned Marine Grade Copper Wiring Loom (crimped for you for easy installation), Double Braid Nylon Rope and Galvanised Chain and an Australian made 316 SS TUFF Deck Roller.
Couldn't load pickup availability
About Product
About Product
The TUFF-240 High Capacity Drum Winch delivers exceptional anchoring performance, precision, and durability with a powerful transmission output in a sleek design. Perfect for larger recreational or commercial boats, it thrives in demanding applications where higher anchoring strength and capacity are critical.
Constructed with 100% Australian Made and machined 316 Stainless Steel Drum, 6061-T6 Alloy bearing caps and stainless steel oversized bearings, Machined Beveled Edges (TUFF Exclusive). Backed by our 5 year warranty guarantee!
TUFF WINCH Full Kits include Australian made wiring looms that are made with tinned marine grade oxygen free cable, tinned copper lugs as well as epoxy filled heat shrink. These looms are ready to go right out the box for you to install, saving you hours of headaches during the installation process.
TUFF WINCH features true Italian Made Power Transmissions:
- Anodised Worm Drive Gearbox with stainless steel hub and fixtures (marine graded + oversized). Will stand the test of time against any salt water conditions.
- Powerful IP66 Epoxy-coated 1500w 4 brush DC Motor compliant with the International Protection Regulation Certified IEC/EN 60529 (marine graded + oversized). We don’t use aluminum “protection” sleeves as they are prone to water ingress issues, our motors are designed to get wet!
- Complete rounded transmissions expertly designed for easy and compact installations.
Designed with precision engineering and built to last, the TUFF-240HC suits boats up to 8 meters with a holding capacity of up to 3000 kgs and can be mounted in 16 different positions making them versatile for many applications. Holds up to 100m of 8mm double braid nylon rope + 6m of galvanized chain. All Drum Anchoring systems require wiring to operate. TUFF WINCH can be operated from your boat’s main battery supply or a dual-battery supply setup, whatever you prefer!
The installation process for the TUFF WINCH is designed to be simple and efficient for Australian boaters. Once you have chosen and prepared an appropriate mounting location, aligned the winch to your desired position, and completed the wiring and switch installation in accordance with the provided diagram, the final step is to perform operational tests to verify proper functionality. Upon successful testing, the winch is ready for use.
The TUFF-240 High Capacity has been the go-to choice for Australian fisherman and boaters who require higher torque power and rope capacity for larger boats, with its oversized transmission and gearing no anchoring task is too big for this capable heavy duty unit.

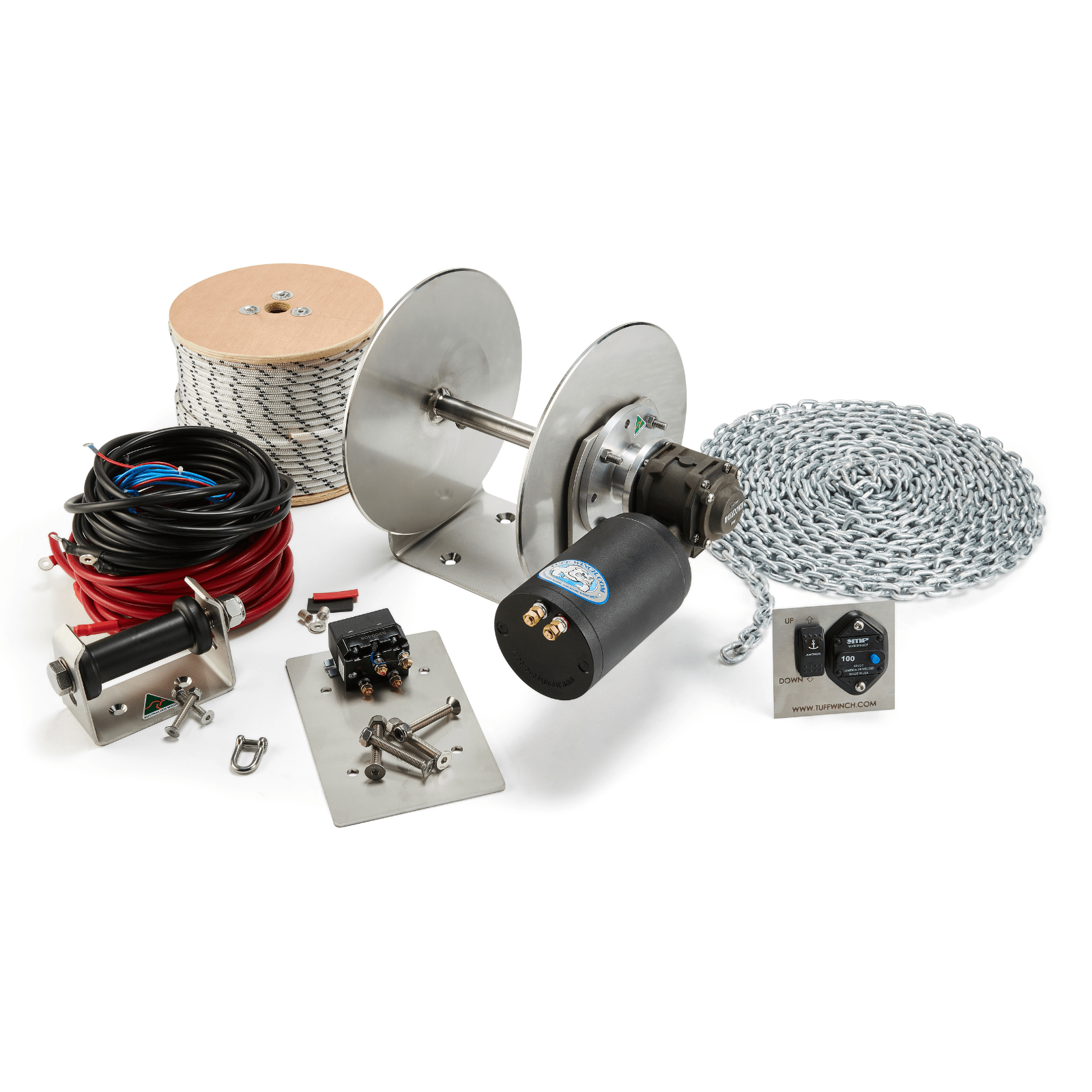

What's Included?
What's Included?
✓ TUFF-240 High Capacity Drum Anchor Winch - (Australian Made)

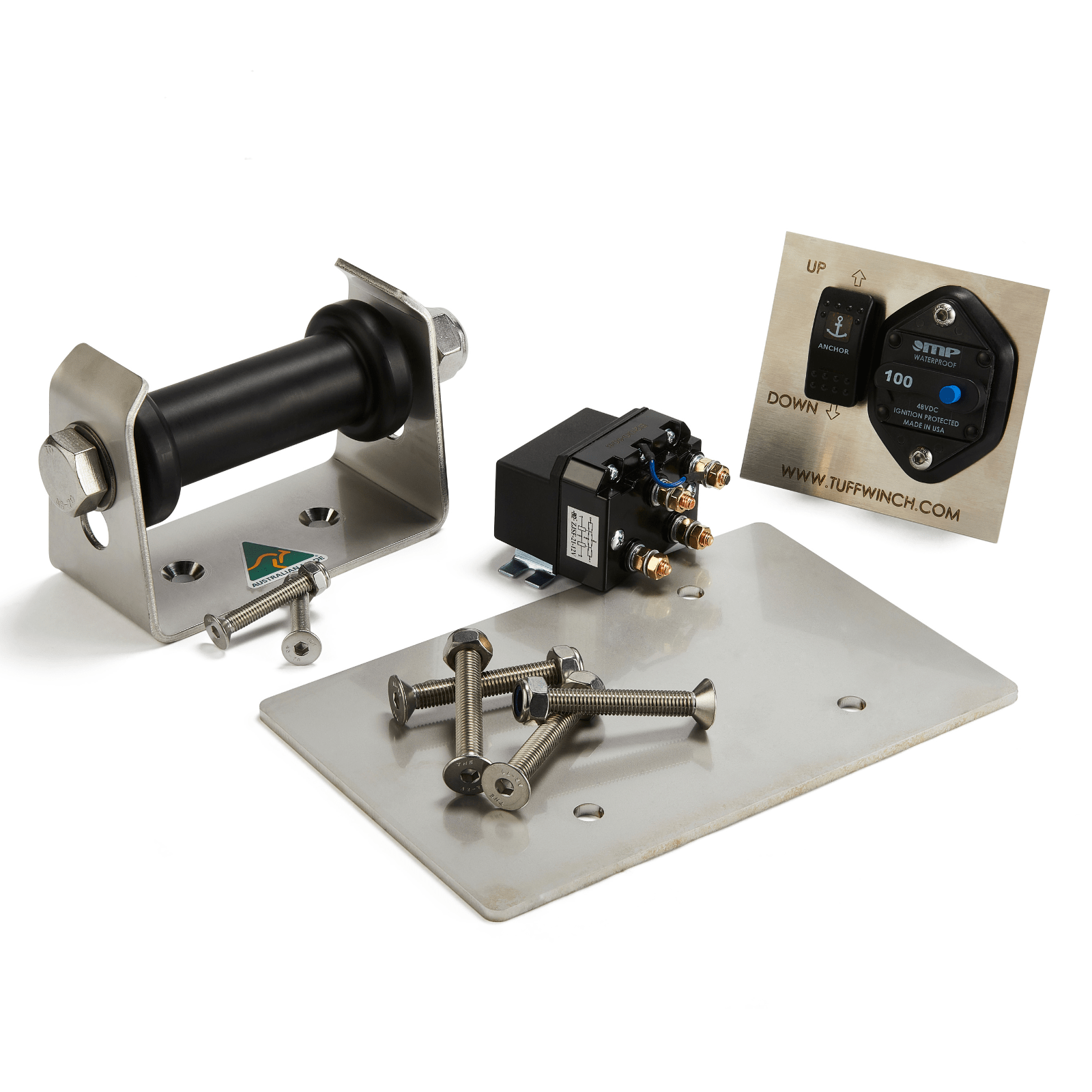

✓ TUFF Deck Roller - (Australian Made)

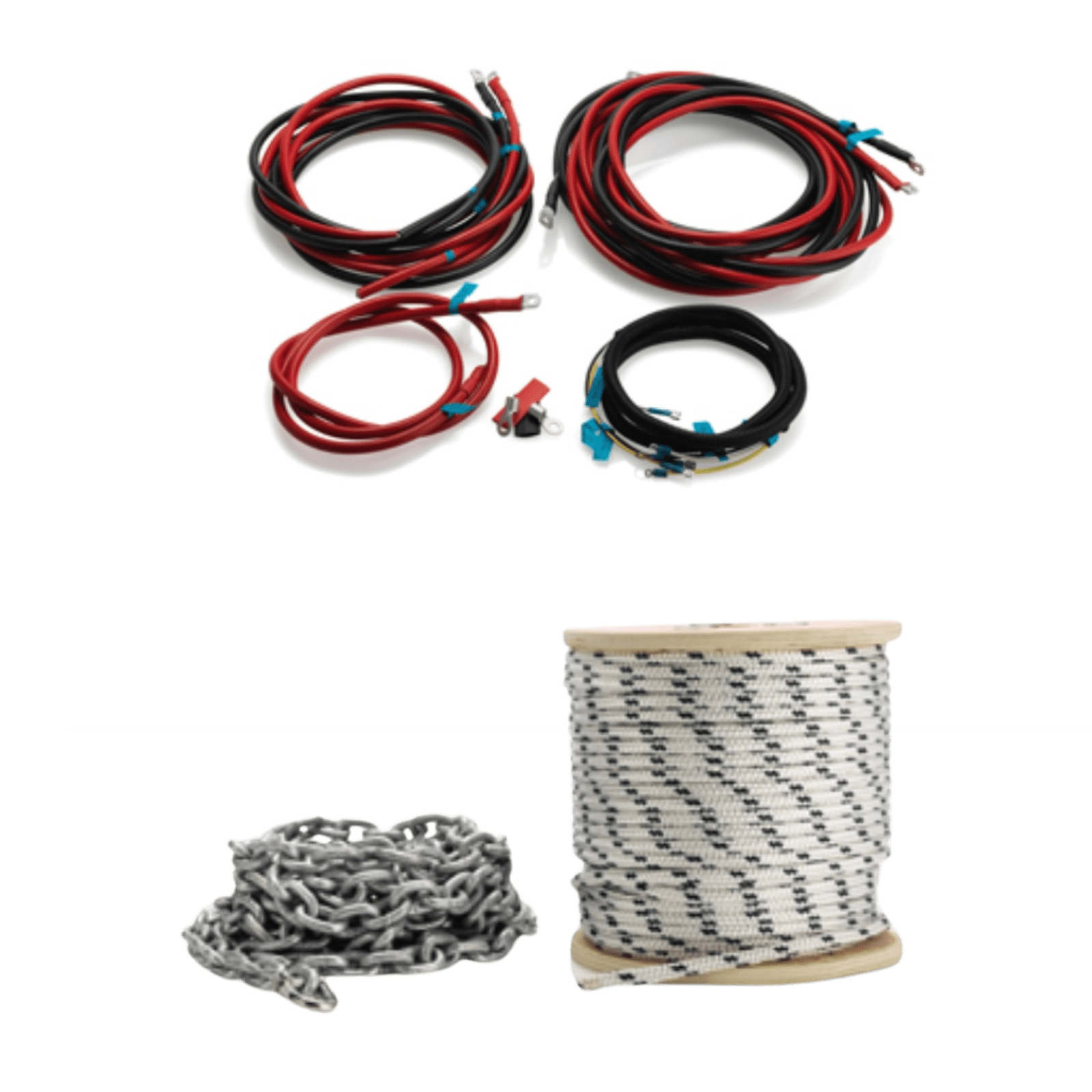

✓ Tinned Copper Wiring Loom Australian Made - (Crimped & ready to install)
✓ 100 Meters of 8mm Double Braid Nylon Rope + 8 Meters of 8mm Galvanized Chain - (Incl. Galvanised Shackle)
✓ 6mm 316 SS Base Plate - (Australian made and customised for TUFF WINCH)
✓ Solenoid - 400AMP
✓ Marine Grade Circuit Breaker
✓ 316SS Switch Panel - (Custom made for TUFF WINCH)
✓ All Necessary 316 Stainless Steel nuts, bolts and washers
✓ 5 Year Warranty (Direct with manufacturer not through third parties)
✓ Installation diagram(s)
Features
Features
✓ Italian 1500w IP66 epoxy-coated 4 brush motor - TUFF Exclusive (Full water-protection compliant with the International Protection Regulation Certified IEC/EN 60529)
✓ Manufactured and Designed in Australia
✓ Italian Anodised Worm Drive Gearbox with stainless steel hubs and fixtures - TUFF Exclusive (Marine graded + oversized)
✓ Solid 316SS Machined 25mm Spool Shaft
✓ Super Durable 6mm 316SS Plate Covering Entire Unit
✓ Holds up to 100m of 8mm double braid rope + 6m of galvanized chain
✓ 316SS Twin Shaft Bearing Design - (Oversized)
✓ 16 Adjustable Mounting Positions (Position the motor to suit your setup)
✓ 3000kg Holding Capacity

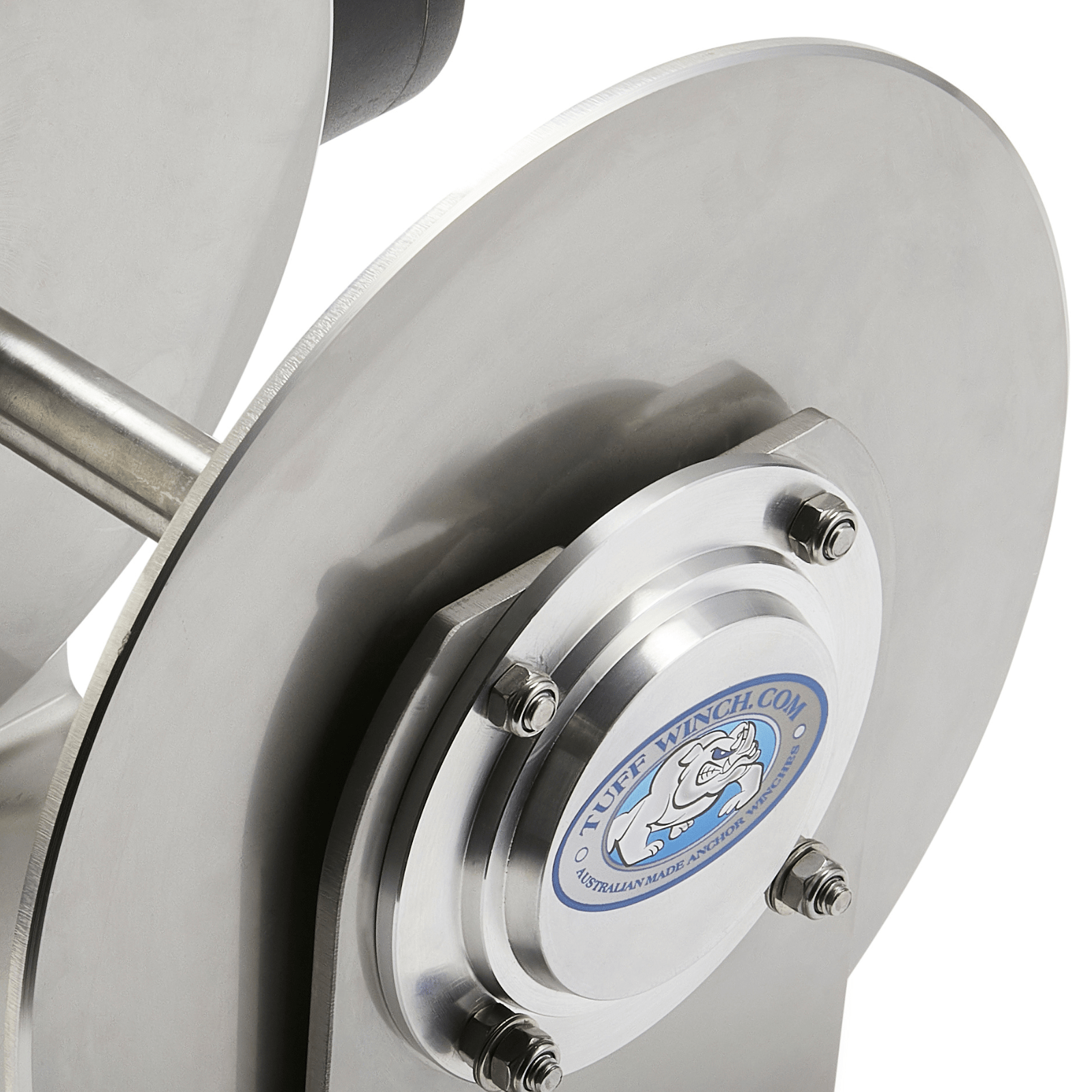

✓ Machined Bevelled Edges - TUFF Exclusive (Preserves longevity of your rope)
✓ Machined Bearing Cover T6061 -T6 - (Fully Sealed)
✓ 30+ years experience in the power transmission industry (no other winch manufacturer has this level of experience)
✓ 300MM Drum Diameter
Share

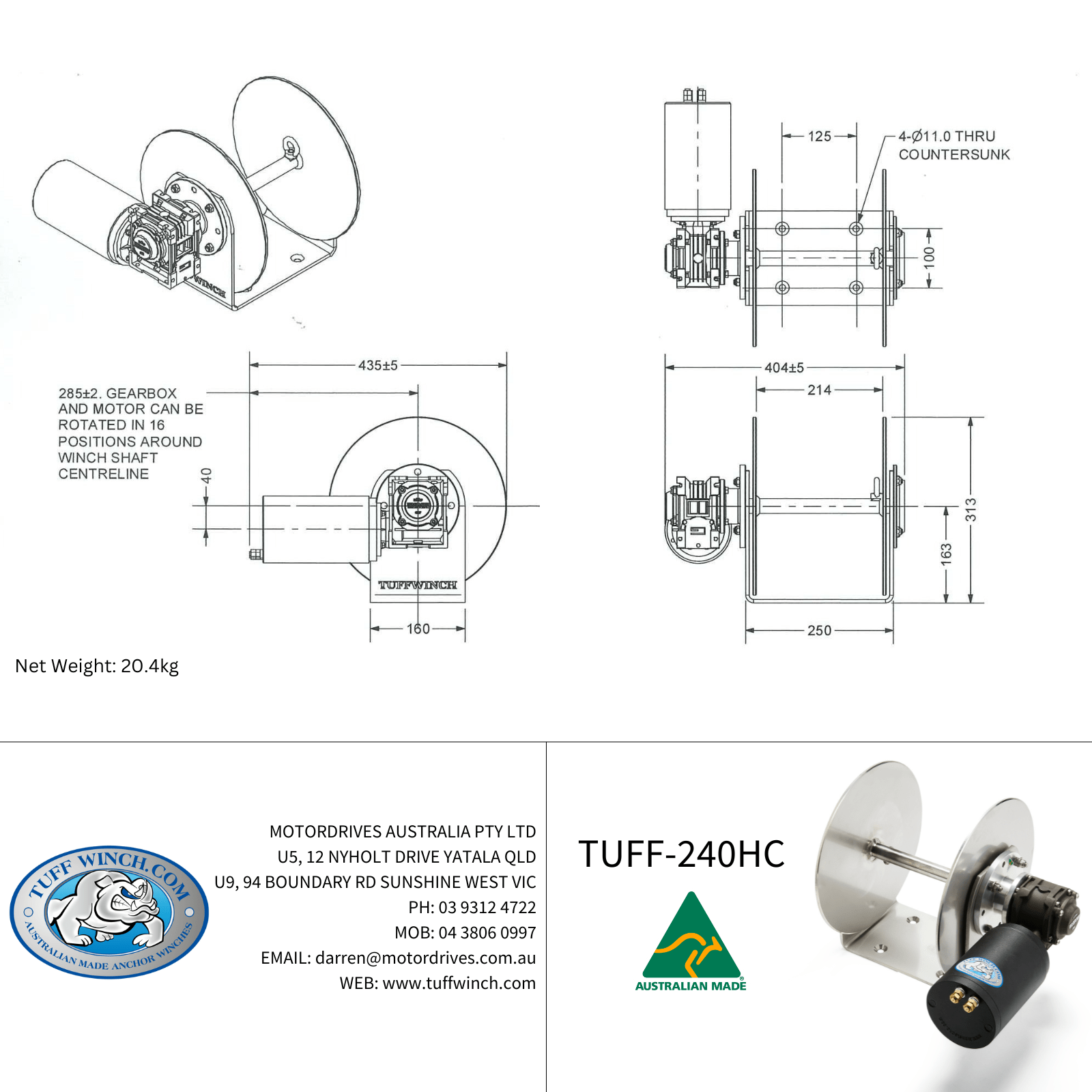

240HC Product Drawing
Awesome quality product all Australian made called tuff winch and Darren helped me select a winch to suit my boat highly recommend anyone calling him for assist was fast delivery
Great quality. Super fast
excellent winch great service .
A+++ As described. Highly recommend
Well done
Your answers to the most
Frequently Asked Questions
What battery setup do I need?
Our winches run off your main battery supply or a dual setup, so it has versatile suitability to whatever battery arrangement you prefer.
Why are your motors black not stainless?
That's an intentional choice, we utilise an oversized epoxy-coated 4 brush motor on every drum winch for true efficiency and a longer lifespan. Others use aluminium sleeves which put your motor at risk of water ingress or corrosion over time.
Do you offer free fall?
We don't have a free fall feature as standard with our winches are it sacrifices the structural integrity of the unit. They are driven up-down with switches and are very quick however we can customise your winch for this feature if you wish upon request.
How do I activate the warranty?
Your 5 year warranty begins after purchase and you can be rest assured that we backup our warranties in-house with large quantities of any and all components you may need down the track.
Are they easy to install?
Our drum winches are very easy to self install. They can be integrated with any new setup or current setup you may have and both our full kits and standalone units include the core electrical components to get you started. Following along our installation sheet is simple and we have a contact number for you to get support at anytime during installation if you run into any issues.
