TUFF-200 Heavy Duty Drum Anchor Winch Full Kit

TUFF-200 Heavy Duty Drum Anchor Winch Full Kit

The TUFF-200 Heavy Duty is built for boaters with larger vessels up to 6.5 meters who need serious anchoring power without the physical punishment. The enhanced gearbox delivers 50% more holding capacity (3000kg) than the standard TUFF-200, making it the solution for heavier boats that demand extra torque. Anchor solo with wireless remote control, no crew needed, no back strain. This complete kit includes pre-crimped Australian-made wiring loom, rope, chain, deck roller, switches, and all hardware so you can install in an afternoon and handle your heaviest anchoring tasks with the push of a button.

$1,889.99 AUD
$1,889.99 AUD
Sale Sold out
Wireless Remote

Product Details

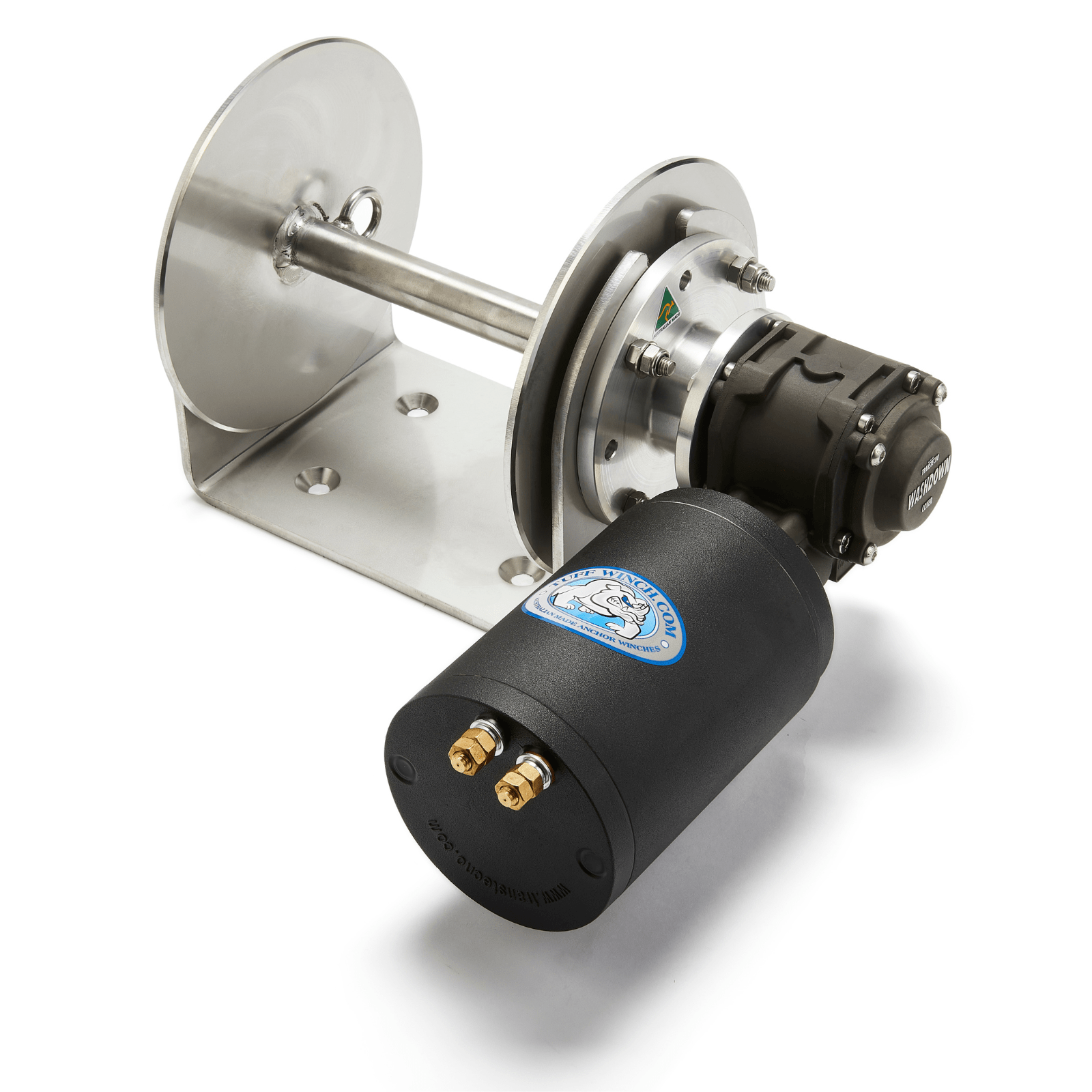

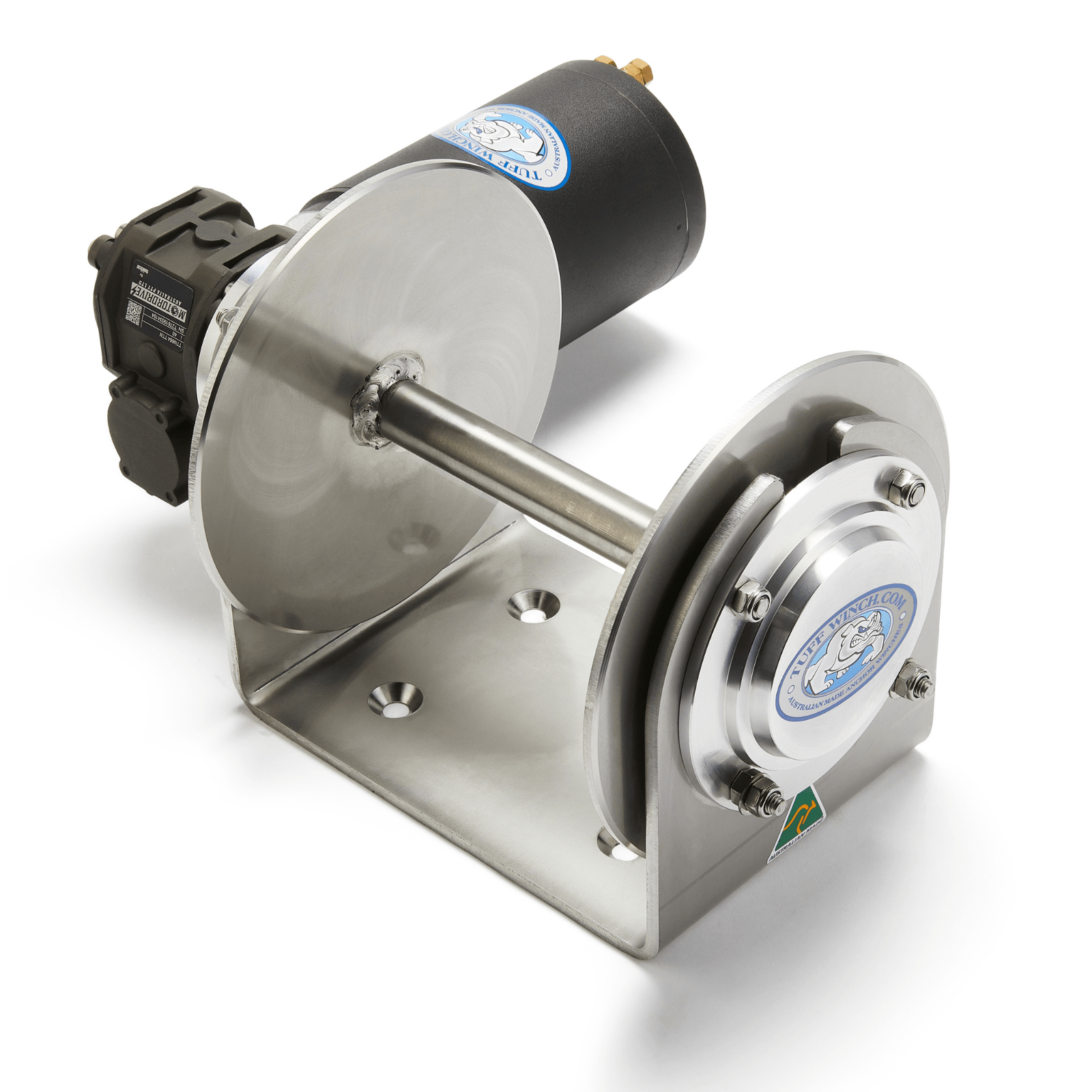

TUFF-200 Heavy Duty Drum Anchor Winch

Anchor Solo. Protect Your Back. Get On With Your Day.

The backbreaking work of manual anchoring keeps too many boaters tied to the dock or dependent on crew. The TUFF-200 Heavy Duty ends that. Drop and retrieve your anchor with a wireless remote from up to 20 meters away, or use the rocker switch for instant control at the bow. One person can handle the entire anchoring process in seconds, not minutes of exhausting chain hauling.

Why Australian Boaters Choose the TUFF-200 Heavy Duty

Built for Heavier Boats That Need More Muscle

The TUFF-200 Heavy Duty features an enhanced oversized gearbox that delivers significantly more torque than the standard TUFF-200. With a 3000kg holding capacity versus 2000kg, this winch is engineered specifically for larger vessels up to 6.5 meters and heavier boat applications. If you've got a bigger boat or anchor in challenging conditions, this is the winch that won't let you down.

Built to Survive Saltwater

Every component is engineered for Australian marine conditions. The 100% Australian-made 316 stainless steel drum (6mm thick with machined beveled edges) won't corrode or fail. Oversized stainless steel bearings and 6061-T6 alloy bearing caps are sealed and built to last. This winch handles up to 60m of 6mm double braid nylon rope plus 6m of galvanized chain, with a holding capacity of 3000 kg.

Italian Power Transmission, No Maintenance Headaches

The enhanced oversized anodized worm drive gearbox with stainless steel hub and fixtures is pre-filled with synthetic oil and fully sealed. The IP66-rated 1000W 4-brush DC motor is epoxy-coated and designed to get wet. No aluminum sleeves that let water in. This transmission system is marine-graded, oversized, and built to handle the toughest anchoring conditions Australia can throw at it.

Install Once, Anchor Anywhere

16 mounting positions mean you can position the TUFF-200 Heavy Duty exactly where you need it. The complete rounded transmission design makes installation straightforward in tight spaces. Australian-made wiring looms come ready to connect straight out of the box: tinned marine-grade oxygen-free cable, tinned copper lugs, and epoxy-filled heat shrink. No cutting, crimping, or hours of frustration. Connect to your main battery or dual-battery setup and you're ready to go.

5-Year Warranty Guarantee

We hand-build every TUFF-200 Heavy Duty in Queensland and back it with a 5-year in-house warranty. Over 10,000 Australian boaters trust TUFF WINCH for their anchoring systems, and for good reason.

Everything You Need in One Complete Kit

We've put together this full kit because we know how frustrating it is to buy a winch only to discover you need another dozen parts before you can use it. You end up spending hours tracking down the right rope, chain, switches, breakers, and mounting hardware from multiple suppliers. Then you're stuck figuring out which wiring gauge you need and how to crimp marine-grade connectors properly.

This kit eliminates all of that. Every component is specifically selected and professionally assembled to work together as a complete drum winch system. The wiring is already crimped and ready to install. The base plate is custom-made for the TUFF-200 Heavy Duty. The rope and chain are pre-attached with a galvanized shackle. You get clear installation diagrams that show you exactly how everything connects.

One order. One delivery. One afternoon to install. Then you're anchoring.

Stop Wrestling With Your Anchor. Start Enjoying Your Boat.

The TUFF-200 Heavy Duty gives you the freedom to boat solo, anchor with precision from the helm, and avoid the strain that ruins your back and shoulders. Whether you're an early-morning fisherman or a weekend cruiser with a larger vessel, you deserve an anchoring system that works as hard as you do without making you work hard at all.

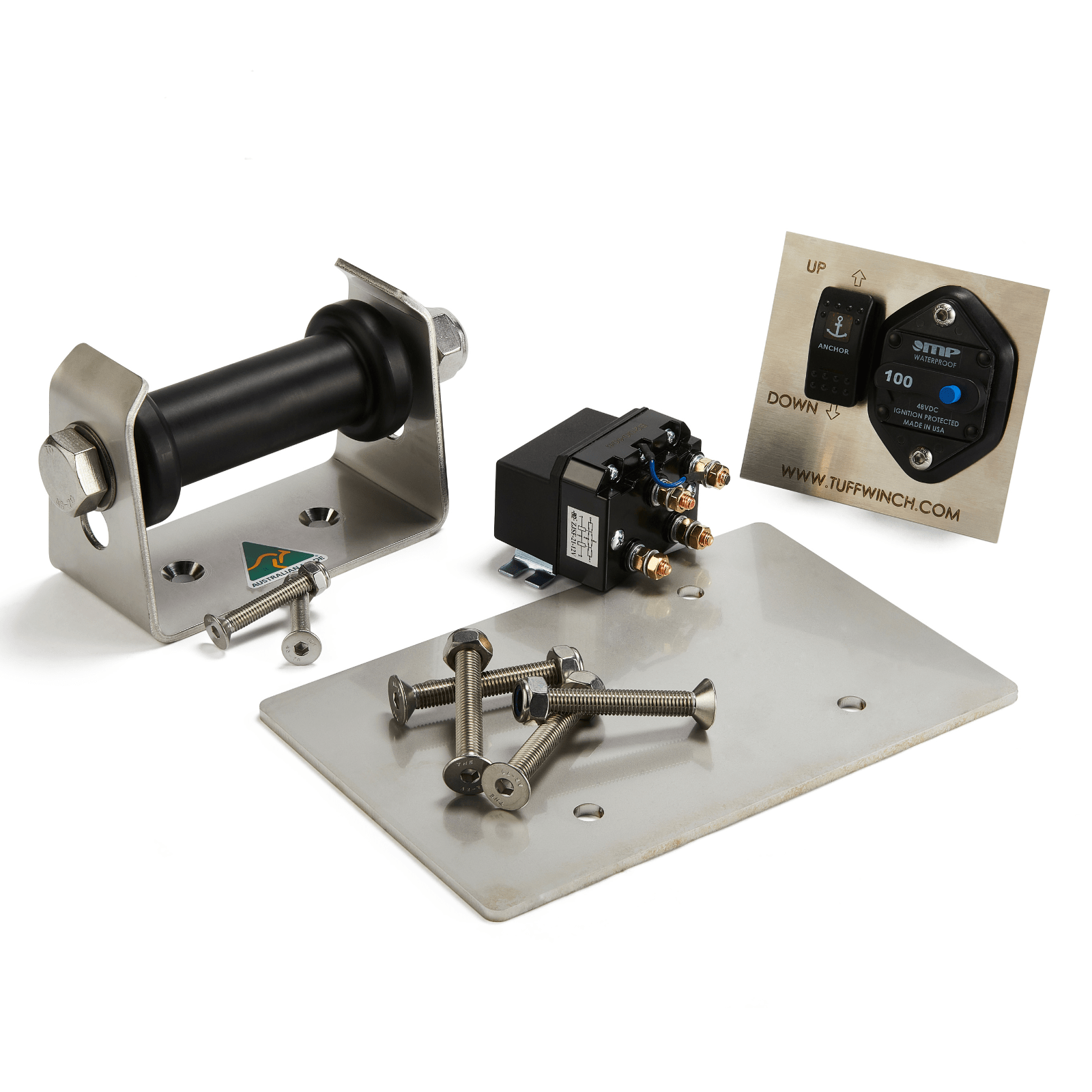

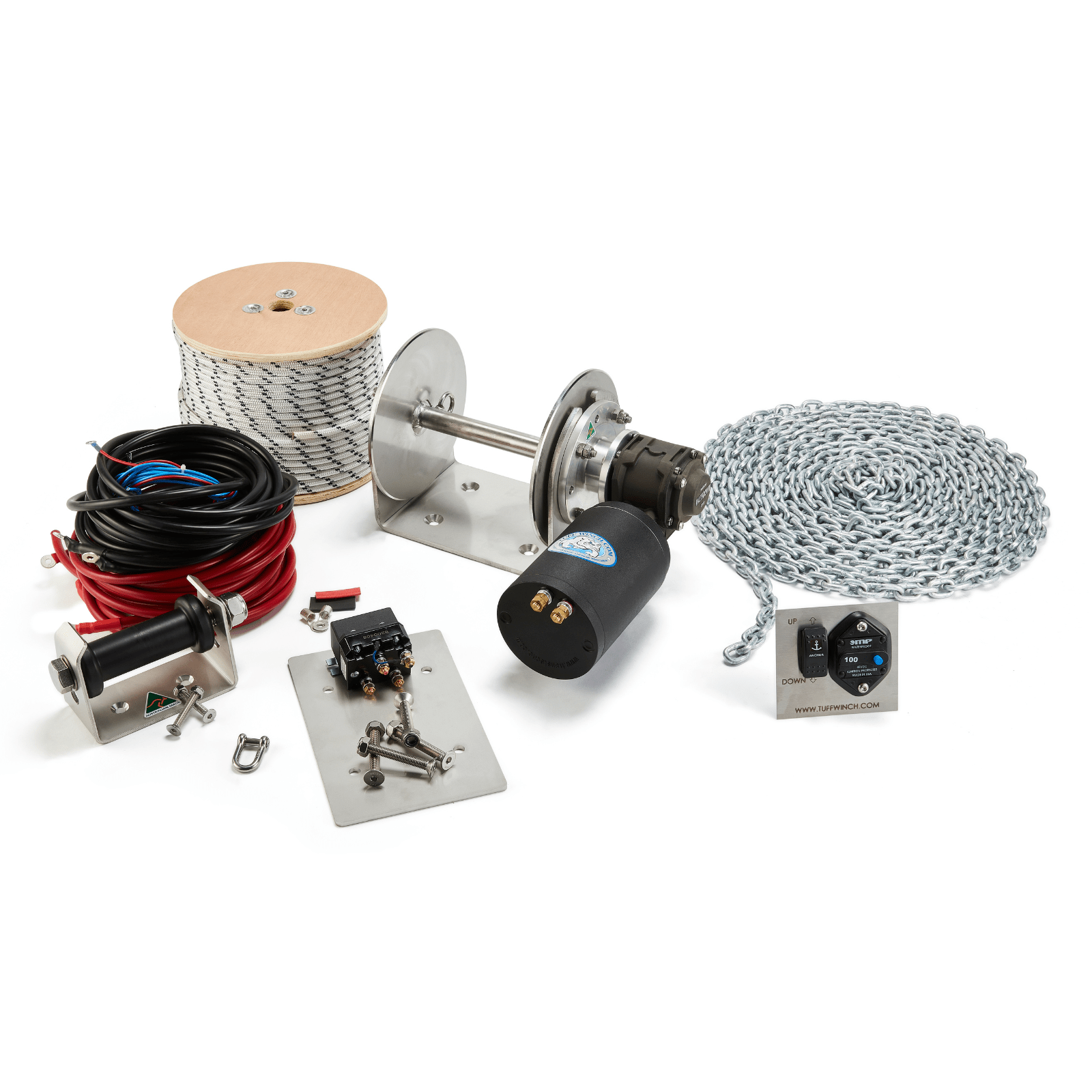

What's Included?

  • TUFF-200 Heavy Duty Drum Anchor Winch (Australian Made)
  • TUFF Deck Roller (Australian Made)

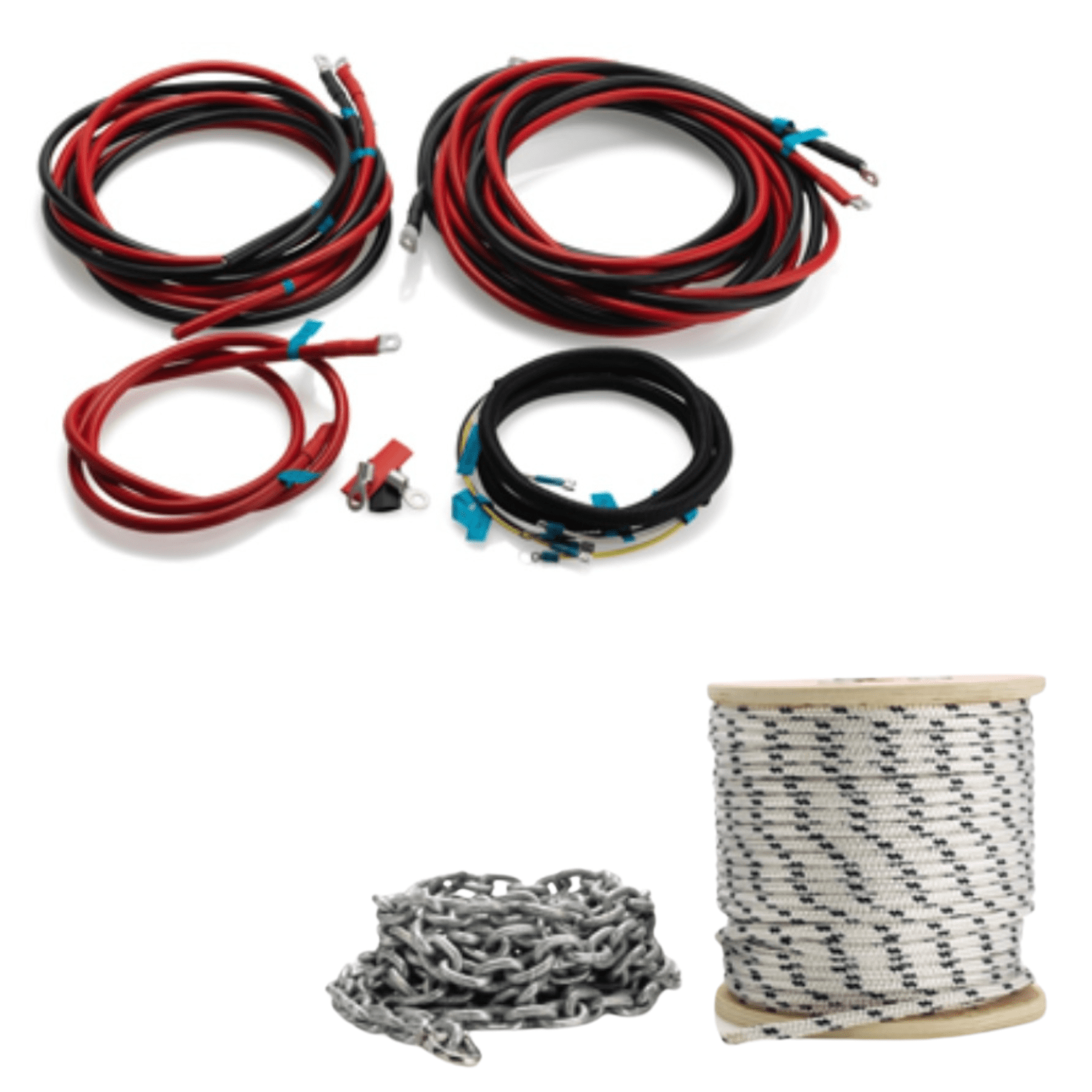

  • Tinned Copper Wiring Loom Australian Made (Crimped & ready to install)
  • 60 Meters of 6mm Double Braid Nylon Rope + 6 Meters of 6mm Galvanized Chain (Incl. Galvanised Shackle)
  • 6mm 316 SS Base Plate (Australian made and customized for TUFF WINCH)
  • Solenoid: 400AMP
  • Marine Grade Circuit Breaker
  • 316SS Switch Panel (Custom made for TUFF WINCH)
  • All Necessary 316 Stainless Steel nuts, bolts and washers
  • 5 Year Warranty (Direct with manufacturer not through third parties)
  • Installation diagram(s)

Features + Technical Specs

  • Italian 1000w IP66 epoxy-coated 4 brush motor - TUFF Exclusive (Full water-protection compliant with the International Protection Regulation Certified IEC/EN 60529)
  • Manufactured and Designed in Australia
  • Italian Anodised Worm Drive Gearbox with stainless steel hubs and fixtures - TUFF Exclusive (Marine graded + oversized)
  • Solid 316SS Machined 25mm Spool Shaft
  • Super Durable 6mm 316SS Plate Covering Entire Unit
  • Holds up to 60m of 6mm double braid rope + 6m of galvanized chain
  • 316SS Twin Shaft Bearing Design - (Oversized)
  • 16 Adjustable Mounting Positions (Position the motor to suit your setup)
  • 3000kg Holding Capacity
  • Machined Bevelled Edges - TUFF Exclusive (Preserves longevity of your rope)
  • Machined Bearing Cover T6061 -T6 - (Fully Sealed)
  • 30+ years experience in the power transmission industry (no other winch manufacturer has this level of experience)
  • 200MM Drum Diameter
  • Suits vessels up to 6.5 meters
  • Wireless remote range: Up to 100 meters
  • 5 Year Warranty
View full details

full anchoring system for your boat in one kit

ANCHOR SOLO, ANYWHERE

Control your entire anchoring system from the helm with the wireless remote. Drop and retrieve anchor without running back and forth or needing someone at the bow. Whether you're fishing solo at dawn or exploring quiet anchorages with family, one person handles everything safely from wherever they're standing. No back strain, no crew needed, no limits on where you can go.

Clean, simple install

Everything arrives at your door ready to connect. Pre-crimped marine-grade wiring loom, rope already attached to chain with shackle, custom switch panel, circuit breaker, and deck roller. No hunting down parts from five different suppliers. No guessing which gauge wire you need. One afternoon to install, then you're out on the water.

full anchoring system for your boat in one kit

Your answers to the most

Frequently Asked Questions

What battery setup do I need?

Our winches run off your main battery supply or a dual setup, so it has versatile suitability to whatever battery arrangement you prefer.

Why are your motors black not stainless?

That's an intentional choice, we utilise an oversized epoxy-coated 4 brush motor on every drum winch for true efficiency and a longer lifespan. Others use aluminium sleeves which put your motor at risk of water ingress or corrosion over time.

Do you offer free fall?

We don't have a free fall feature as standard with our winches are it sacrifices the structural integrity of the unit. They are driven up-down with switches and are very quick however we can customise your winch for this feature if you wish upon request.

How do I activate the warranty?

Your 5 year warranty begins after purchase and you can be rest assured that we backup our warranties in-house with large quantities of any and all components you may need down the track.

Are they easy to install?

Our drum winches are very easy to self install. They can be integrated with any new setup or current setup you may have and both our full kits and standalone units include the core electrical components to get you started. Following along our installation sheet is simple and we have a contact number for you to get support at anytime during installation if you run into any issues.

Where do your reviews come from?

Our reviews are verified TUFF WINCH customers and sourced from our public eBay profile, Google Business profiles and our Website. The majority comes from our eBay profile which has over 1500+ positive reviews which we have accumulated over 14+ years of selling on the platform.
